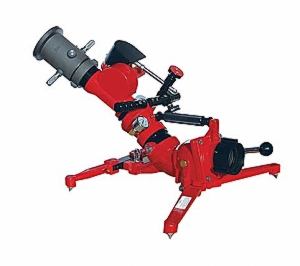

Individual Portable Oscillating Monitor

Individual Portable Oscillating Monitor

  • Water driven motor sweeps the nozzle side to side
  • Automatic oscillation at 20°, 30°, or 40° sweep
  • On/Off knob can stop oscillation at any point
  • The oscillating mechanism can be disengage and horizontal rotation moved manually
  • Elevation is manually adjustable between 30° to 60° unmanned
  • Built in pressure gauge
  • Large handle makes moving easy
  • Ball shutoff with locking handle
  • Carbide tips spikes for extended wear and stability
  • Weight: 33 lbs

Item
Description
Length
Weight (lbs)
IPM5000SC
Oscillating Portable Monitor
15”
33
MS500
Master Stream Nozzle
6.75″”
4
DT9
Deluge Tip 1.5″
9”
2
SS3
Stream Straightener
3”
2”
MP100
Mounting Plate
15″
4
